Lohen shares MINI Wheel Buyer’s Guide

Lohen, the MINI specialists are on hand to walk you through all the key terms and sizing info needed to know before buying your next set of wheels

Wheel Size: Diameter & Width
When people say “17-inch wheels,” they’re referring to the diameter of the wheel — the size of the hole your tyre sits around. For MINI models like the R56 and F56, popular sizes are 17″ and 18″, though some of the larger cars like the F60 or F54 JCW may go up to 19″.

The width (this is referred to as J measurement and is in inches e.g. 7J, 7.5J, 8J) affects how the tyre stretches and how the wheel fits inside the arch. Wider wheels can improve grip but might require arch clearance or camber adjustments.

PCD: Pitch Circle Diameter
PCD stands for Pitch Circle Diameter — the number of wheel bolt holes and the diameter of the circle they form.

The MINI range have a PCD as follows:

• R50, R52 and R53 and Gen 2 R55, R56, R57, R58 and R59: 4×100
• R60 / R61 Countryman and Paceman use 5 x 120
• F54/ F55/ F56 / F57 and F60 use 5×112

Make sure your new wheels match your MINI’s PCD or come with the correct adapters.

Offset (ET)
Offset, often marked as ET, is the distance between the centreline of the wheel and the hub mounting surface.

A lower offset (e.g., ET35) pushes the wheels outward, giving a more aggressive stance.
A higher offset (e.g., ET50) tucks the wheels in further.
The ideal offset for MINI models usually falls between ET35–ET50, but it varies by body style, suspension and geometry setup and also the brakes that are fitted. Too low and you risk rubbing on either the suspension strut or the arch liner.

Centre Bore

The centre bore is the hole in the middle of the wheel that fits snugly onto the hub.

• MINI R53 / R56 : 56.1mm
• MINI R60 and R61 72.6mm
• MINI F56: 66.6mm (shared with BMW models)

If your new wheels have a larger bore, spigot rings can be used to centre the wheel properly on the hub. A spigot ring sits into the centre bore of the wheel acting as a reducer.

Wheel Weight & Construction
Not all wheels are made the same. Aftermarket options range from cast alloy (budget-friendly) to forged or flow-formed wheels, which are lighter and stronger — perfect for performance or track builds.

Reducing unsprung weight with lighter wheels can improve steering response, acceleration, and ride quality.

Staggered vs. Square Setups
MINI models typically use a square setup — the same size wheels front and rear — for balanced handling and tyre rotation. Some MINI owners may opt for a staggered setup (wider rear wheels), but this is more for stance than performance unless you’re running serious power. We would generally suggest using a wheel spacer to acheive this. Good quality spacer are available and safe to use. This allows the flexiblity to return to the square set up in the future.

Final Tips Before You Buy

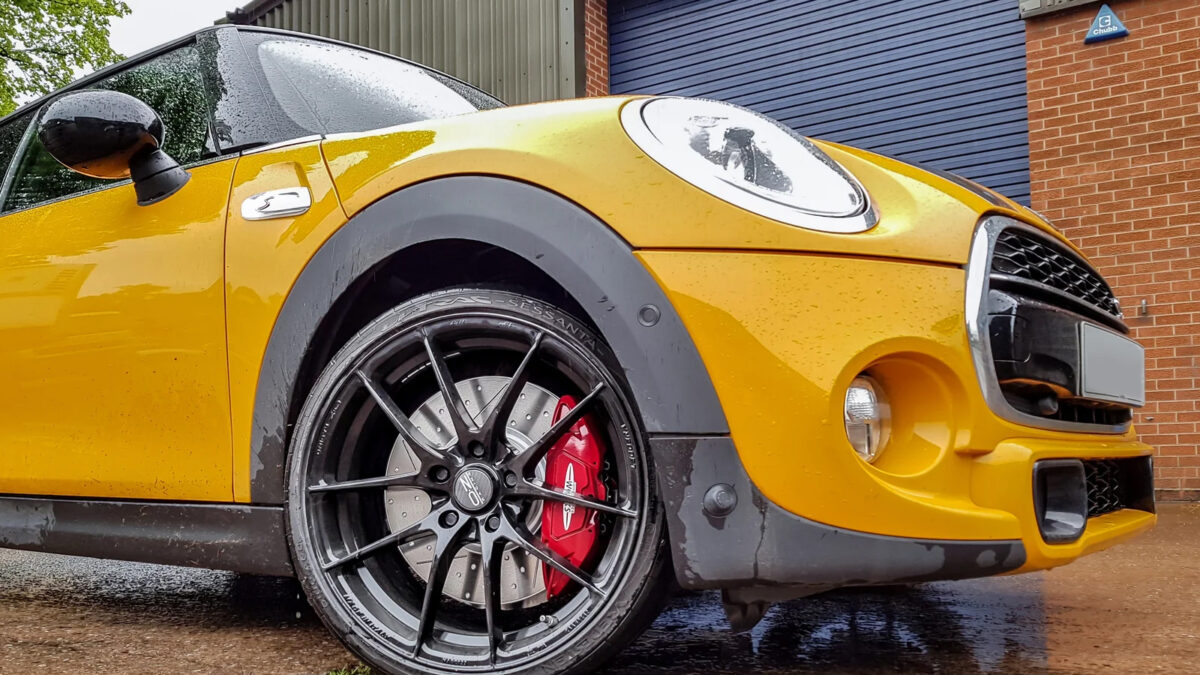

• Check brake clearance — especially on JCW models that are usually equipped with larger brake calipers or if the MINI is equipped with aftermarket brake or if there is consideration to fit a big brake kit in the future.
• Account for tyre sizes — wider wheels often need lower-profile tyres to maintain rolling diameter
• Confirm offset and PCD compatibility — don’t assume OE sizing in an aftermarket wheel will have the same clearance to the caliper or arch. All wheels have slightly different internal areas owing to their design shapes i.e. the spokes maybe concave or convex
